Double Girder Overhead Cranes: The Backbone of Modern Industry
In the world of material handling and heavy lifting, efficiency, safety, and reliability are non-negotiable. For decades, the Double Girder Overhead Crane has stood as an undisputed champion in factories, warehouses, and fabrication plants worldwide. But what exactly sets this industrial lifting equipment apart? This ultimate guide dives deep into its design, benefits, and applications, helping you determine if it’s the right factory crane solution for your needs.
What is a Double Girder Overhead Crane? Core Design Explained

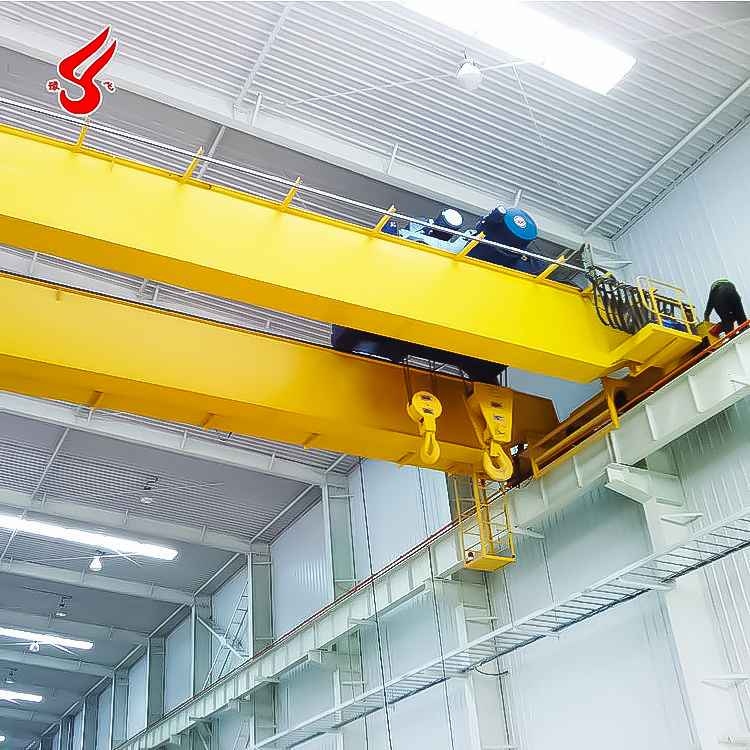

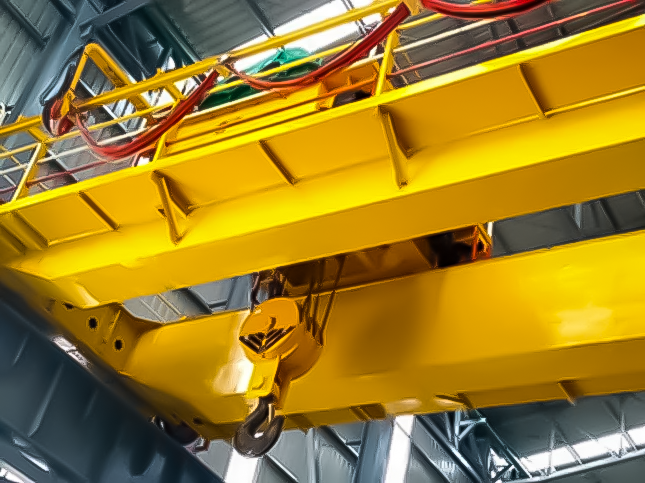

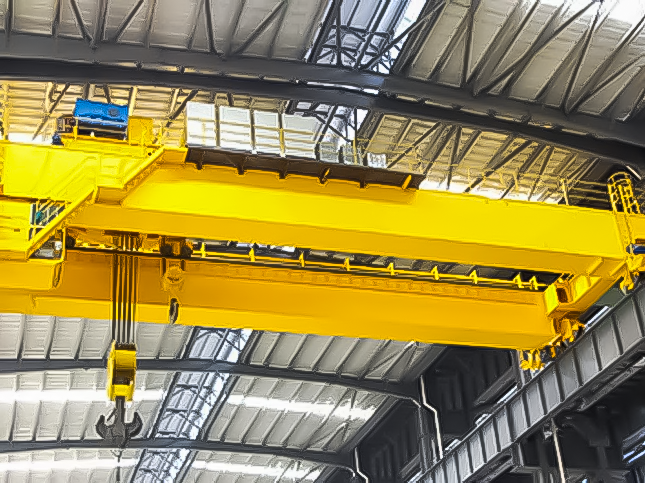

A Double Girder EOT Crane (Electric Overhead Traveling Crane) is a type of bridge crane characterized by its two primary horizontal beams (girders) that run parallel along the length of the bay. These girders are supported on either end by trucks that travel along fixed runway rails mounted on the building structure. A trolley, housing the hoist and lifting mechanism, moves across the width of the two girders.
This dual-girder configuration creates a robust and stable platform, distinguishing it fundamentally from a single girder overhead crane. The design inherently offers a stronger lifting framework, allowing for:
Higher Lifting Capacities: Suitable for heavy duty crane applications from 10 tons to several hundred tons.
Greater Hook Height: The hoist is mounted on a trolley that runs between the girders, maximizing the available vertical lift space beneath the crane.
Ability to Handle Specialized Attachments: Easily accommodates auxiliary hoists, magnets, grabs, or other below-the-hook devices.
Key Advantages & Technical Benefits: Why Choose a Double Girder Design?
Choosing a double girder bridge crane over other types brings tangible operational advantages:
Superior Strength & Durability: The twin-girder system provides exceptional structural integrity for heavy load handling, reducing deflection and ensuring smoother operation under full capacity.
Enhanced Hook Approach: Offers a closer hook approach to the runway beams, maximizing usable floor space beneath the crane.
Higher Duty Cycles: Engineered for A4 to A8 duty classifications (FEM/ISO standards), making them ideal for intensive, continuous use in steel manufacturing, automotive assembly, and other demanding sectors.
Greater Customization & Feature Integration: The design readily accommodates advanced features like frequency control drives for precise positioning, Crane Management Systems (CMS) for predictive maintenance, and comprehensive overhead crane safety devices.
Critical Safety Features for Modern Operations
Safety is paramount. Modern double girder cranes are equipped with a suite of protective devices:
Overload Limit Switches: Prevent the hoist from lifting loads beyond its rated capacity.
Redundant Braking Systems: Ensure fail-safe control of both bridge and trolley movements.
Anti-Collision Systems: Use sensors or radar to prevent multiple cranes on the same runway from impacting.
Emergency Stop Buttons & Warning Alarms: Instantly halt operations and alert personnel.
Upper/Lower Limit Switches: Automatically stop the hoist at its safe travel extremes.
When sourcing a European standard FEM crane or an ISO certified overhead crane, verify that these safety systems comply with international regulations like CMAA, FEM, or your local national standards.
Primary Industrial Applications: Where is it Used?
The versatility of the double girder gantry crane (its floor-supported cousin) and overhead versions makes them indispensable across industries:
Manufacturing & Machining: For moving large raw materials, molds, and finished products.
Steel Mills & Foundries: Handling hot ladles, coils, and heavy steel sections.
Power Generation: Installing and maintaining turbines, generators, and rotors.
Warehousing & Logistic Hubs: Stacking heavy containers and pallets in high-bay storage.

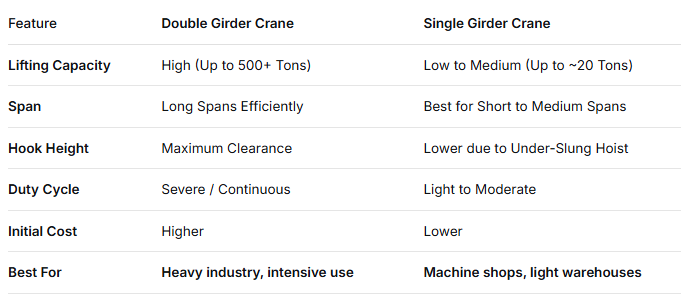

Double Girder vs. Single Girder: Making the Right Choice
This is a crucial decision. Use this simple comparison:
For a definitive overhead crane capacity calculation, always consult with a professional engineer, providing details on load weight, required span, lift height, and duty cycle.
Essential Considerations Before You Buy
Investing in a custom double girder crane requires careful planning. Ask these questions:
What is your maximum lifting capacity and required span?
What is the duty cycle (how many hours/day, lifts/hour)?
Does your building structure support the runway loads? A lightweight double girder design may be beneficial.
What level of control and precision is needed? (e.g., pendant, radio remote, cabin).
What after-sales support, like overhead crane maintenance services, is available?
Partnering with a reputable supplier who offers complete crane installation and training is critical for long-term, safe operation.
Conclusion
The Double Girder Overhead Crane is more than just a piece of equipment; it is a productivity powerhouse designed for the most challenging industrial material handling tasks. Its robust design, high capacity, and adaptability make it a cornerstone of heavy industry. By understanding its advantages, safety features, and how it compares to alternatives, you can make an informed decision that boosts your facility's efficiency and safety for decades to come.
Ready to upgrade your lifting capabilities? Contact our expert team today for a free overhead crane design consultation and quote tailored to your specific factory lifting needs.
